OCAP Common Download

The OpenCable Common Download specification defines a standard download protocol for OCAP. It is intended for OpenCable devices using CableCARDs and provides a means for downloading new code images to specific OCAP devices.

TSBroadcaster includes a common download capability. When a common download is requested, it builds a Code Version Table (CVT) which it passes to TSOOBPlayer for injection in the out-of-band forward direction channel (FDC) or delivery via DSG broadcast tunnel type 5. TSBroadcaster places the signed code image in a DSM-CC data carousel which is referenced by the CVT and plays these out in-band at a designated frequency (defined in the CVT).

As mandated in the Common Download Specification 2.0, CVTs delivered via DSG need to be part of a secure PKCS#7 data structure signed with the MSO Code Verification Certificate (CVC). You can use UniSoft's OCAP Security File Generator (OCAP SFG) to sign a CVT in this manner.

At the OCAP host, the CableCARD Device filters all incoming CVTs and determines if a download is applicable for the attached host. If the download is applicable, then the CableCARD device informs the host of the available download. The host acquires the DSM-CC data carousel and downloads the code object. If a code file for a particular host is not defined in the CVT, then code download for that host is not supported.

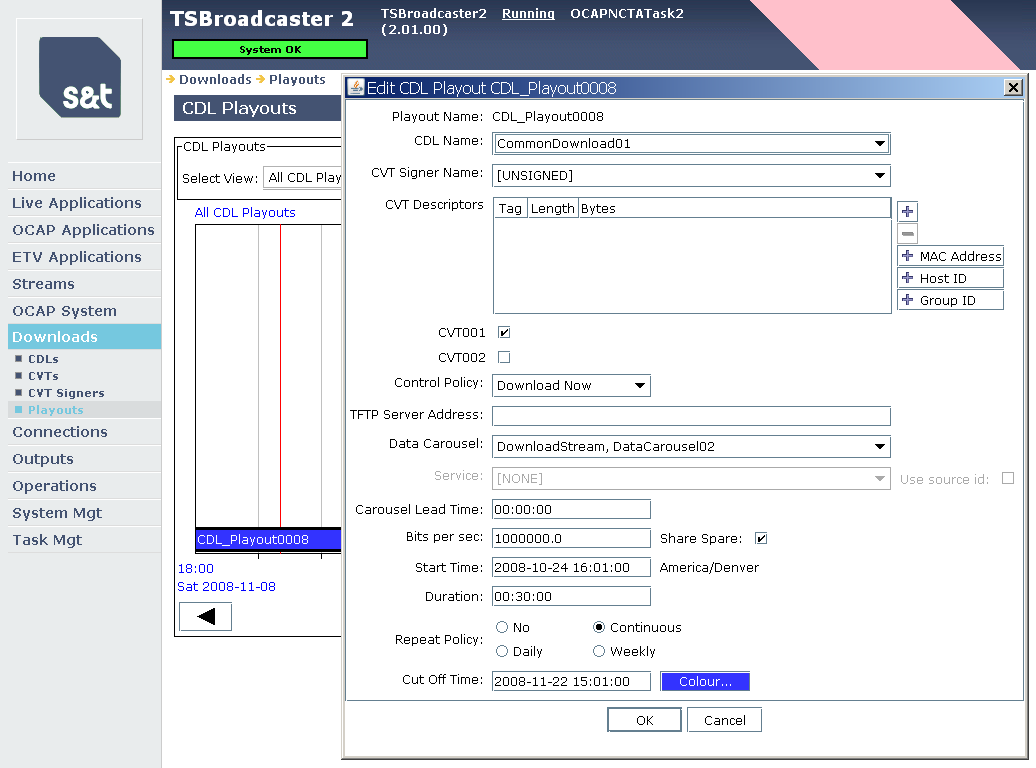

[View screen shot of TSBroadcaster Edit Common Download page].

Code Image Signing

OCAP SFG allows device manufacturers to encapsulate their code image files and code version tables in a PKCS#7 Signed Data file. The Open Cable Security Specification requires code images to be prepared in this format for delivery to the receiver. The Open Cable Code Download Specification requires the code version table to be prepared in the PKCS#7 Signed Data format for delivery to the receiver.

Carriage of certificates in the PKCS#7 Signed Content for a Code Image

Your code image file may be combined with a number of certificate files before it is signed and packaged for delivery. Any of the following certificates may be included as download parameters:

One or more CableLabs Manufacturer CA certificates [TLV Type 17]
The CableLabs Service Provider Root CA certificate [TLV Type 50]
The CableLabs CVC Root CA certificate [TLV Type 51]
The CableLabs CVC CA certificate [TLV Type 52]

The code image and optional download parameters form the Signed Content for the PKCS#7 Signed Data file. The file is signed by your Manufacturer Code Verification Certificate and may need to be subsequently co-signed by the CableLabs Code Verification Certificate.

System Renewability Message in the PKCS#7 for an OCUR Code Image

In addition to the certificates mentioned above, when creating a PKCS#7 Signed Data file for use in OpenCable Unidirectional Receivers (OCUR) you can also include a download parameter containing the System Renewability Message [TLV Type 200].
